Electrophysiological relationship between the nose and the hyoid bone complex

Susumu Mukai; Susumu Mukai

ISSN: 2455-1759

Archives of Otolaryngology and Rhinology

Research Article Open Access Peer-Reviewed

Electrophysiological relationship between the nose and the hyoid bone complex

Susumu Mukai*

Author and article information

Mukai Clinic, Japan

*Corresponding author: Susumu Mukai, MD&PhD, Mukai Clinic, 242-0016, Yamatominami 2-8-9, Yamato, Kanagawa, Japan, E-mail: s-mukai@da2.so-net.ne.jp; ssmmki@me.com

DOI: 10.17352/2455-1759.000112

Received: 16 March, 2020 | Accepted: 25 March, 2020 | Published: 26 March, 2020

Keywords: HBC: Hyoid Bbone Complex; Ala nasi; EMG; Breathing; Swallowing; Sniffing; Coughing

Cite this as

Mukai S (2020) Electrophysiological relationship between the nose and the hyoid bone complex. Arch Otolaryngol Rhinol 6(1): 001-006. DOI: 10.17352/2455-1759.000112

Abstract

Objectives: The hyoid bone of the humans hangs in the upper part of the neck. It is connected to the styloid process via the stylohyoid ligament. The bottom edge of the hyoid bone the larynx is attached to the thyrohyoid ligament. In turn, the larynx is connected with the trachea, bronchi and lungs. These structures constitute a complex that is called the Hyoid Bone Complex (HBC).

Regulating the respiration HBC operates various human actions such as drinking, laughing, singing, swallowing, vomiting-crying and breathing

Upper movements of the HBC inhibit respiration whereas lower movements accelerate respiration.

Method: In this study, electrophysiological recordings were measured by using surface electrodes at the ala nasi and at the HBC during breath holding, phonation, breathing, swallowing and sniffing.

Results: Results showed that there was an electrophysiological relationship between the nose and the HBC during the examined functions.

Conclusion: Congruent movements and electrophysiological activity were observed in the two organs, suggesting that the both organs play an important role in essential human functions.

Main article text

Introduction

The hyoid bone of the humans hangs in the upper part of the neck. It is connected to the styloid process via the stylohyoid ligament. The bottom edge of the hyoid bone the larynx is attached to the thyrohyoid ligament. In turn, the larynx is connected with the trachea, bronchi and lungs. These structures constitute a complex that is called the Hyoid Bone Complex (HBC).

As the hyoid bone is able to move upwards and downwards via the muscles that are attached to its top and bottom edge, the HBC is able to move upwards and downwards too [1]. Upper movements of the HBC inhibit respiration whereas lower movements accelerate respiration.

Regulating the respiration HBC operates various human actions such as drinking, laughing, singing, swallowing, vomiting crying and breathing

In this study, to assess the relationship between the nose and the HBC, electrophysiological recordings were studied during typical functions such as breathing, phonation, coughing, swallowing, and sniffing.

Methods

Electrophysiological recordings were performed in a consulting room. Surface electrodes were attached at the same level of both Ala Nasi (AN) and Hyoid Bone Complex (HBC). Electrophysiological activity was recorded by using the “Neuropack S1” (MEB-9402MB, 2/4 ch. EMG/EP Measuring System, Nihon Kohden Co.) (Figure 1).

Six subjects were involved in the experiments (2 males, 4 females; age range: 26 to 48 years). Subjects were informed about the purpose of the study and about the protocol and the experiments were performed after they expressed their consent.

The following situations were studied:

1) Breath holding

2) Deep inspiration through the nose

3) Phonation [A:]

4) Coughing

5) Swallowing.

Swallowing was, in turn, divided into the following four stages:

1. Beverage (coffee) held in the mouth

2. Beverage swallowed

3. Just after swallowing

4. Coffee entered the esophagus

5) Sniffing

Results

In this section, exemplary recordings from one of the study participants are shown in Figures 2-7 (male subject, 35 years old). The same patterns were observed in all the participants.

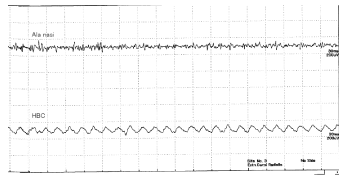

1) Breath holding (Figure 2)

The Figure shows that low-voltage, fast waves were recorded from the AN (top waveform) and slower low-voltage, but slightly higher waves, were recorded from the HBC. The frequency of waves was 50 cycles/sec and may be related to power-line noise from electrical wirings in the room. (Frequency of electricity in Kanagawa district in Japan is 50 Hz. The effect of noise is clearer on HBC recordings because the HBC electrode is more distant from the target structure than the AN electrode. There were no distinct discharge patterns except as only noise was measured from the AN and the HBC.

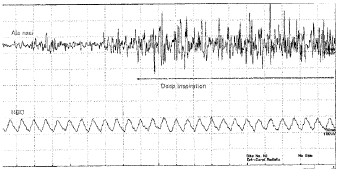

2. Deep inspiration through the nose (Figure 3)

High voltage waves were observed from the AN when air was inhaled deeply through the nose. Relatively higher voltage than those of breath holding waves were observed from the HBC.

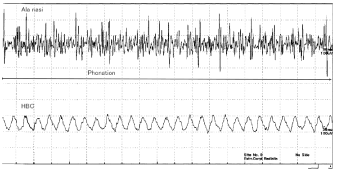

3. During phonation [A:] (Figure 4)

Several high-voltage, high frequency spikes from muscles of the AN were observed during pronunciation of [A:]. Slightly higher waves were obtained from the HBC. Although laryngeal muscles are spiking during phonation, those were not recorded from the HBC.

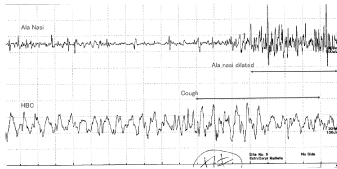

4. When coughing (Figure 5)

Waves with irregular voltage patterns were obtained from the AN at about 40∼50 ms after coughing. From the HBC, unstable waves were observed before coughing and higher waves appeared during coughing.

5. Coffee was used in this swallowing study. Swallowing was divided into four stages as follows:

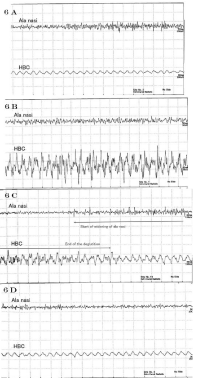

5-1. Beverage (coffee) held in the mouth (Figure 6-1).

When holding coffee in the mouth, low irregular spikes were observed at the AN. No apparent discharge was observed from the HBC.

5-2. Beverage (coffee) swallowed (Figure 6-2).

During swallowing, no spikes were observed from the AN. High voltage, relatively regular spikes were observed from the HBC.

5-3. Just after swallowing (Figure 6-3).

As said above, no spikes were observed during swallowing from the AN. From about 105 ms before swallowing, the muscle activity of AN started and continued for about 330 ms after swallowing. It can be thought that breathing restarted at this time. Waves from the HBC returned to a resting state after swallowing.

5-4. Coffee entered into the esophagus (Figure 6-4).

Both AN and HBC returned to their resting state.

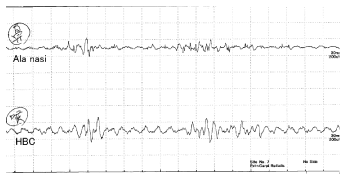

6. Sniffing (Figure 7)

From about 10 to 20 ms before sniffing, active potentials were observed from the AN. Then the HBC was activated for almost the same interval.

Discussion

When breath was held no apparent electrical discharge was observed from the AN and HBC, suggesting that both the nose and the HBC were inactive. They are in a static open state while breath is held (Figure 2).

High spikes were observed at the AN when air was deeply inhaled through the nose (Figure 3). This is in line with previous studies that demonstrated that when the glottis opens wide, the AN opens wide, as the activities of posterior crico-arytenoid muscles are synchronous with AN muscles [2-4].

This study showed that discharges from the HBC increased during deep breaths, suggesting that the HBC moved downward to enable respiration. This suggests that the nose, the larynx and the HBC opened wide to inhale more air. The fact that the nose opens wider may suggest, in turn, that the body is trying to further decrease temperature in the brain [5,6].

Active discharges were observed from both AN and HBC during phonation of [A:] (Figure 4). Although the laryngeal muscles adduct during vocalization, discharges from them were not clear from the HBC recording. This suggests that discharges from the laryngeal muscles are not detected by the surface electrode at the HBC.

The HBC moves downward during phonation, meaning that respiration is involved. In addition, active discharges from the nose are related to the fact that the respiratory tract of the HBC is wide open. These observations suggest that the structures of the nose and the HBC open wider for vocalization. They might act as voice resonators.

Highly irregular voltage spikes were observed from the AN from 40∼50 ms after coughing (Figure 5). As opposed to the discharge observed from the AN, from the HBC unstable waves were observed before coughing and high waves during coughing. These observations suggested that the AN may not move before coughing. The nose opens wide from 40 to 50 ms after coughing, and the HBC moves before coughing and then it starts moving vigorously when coughing begins. From a physiologically perspective, coughing, defecation or effortful action such as weight lifting elicit protective movements of the larynx towards the lower airways and abdomen [7-9]. The larynx might be closed tight by upward moving of the HBC. These movements can be detected by the fingers on the neck too.

Downward movements of the HBC accelerate respiration [1]. Opening of the AN means that the glottis opens wider, too. These movements suggest that both the airway and nose work to increase the airflow and that airways are cleansed when coughing.

Electrophysiological observations during swallowing were divided into four stages (Figure 6; 1-4):

When coffee was held in the mouth, low irregular spikes were observed at the AN. No spike was observed from the HBC. When coffee was held in the mouth, nasal breathing continued whereas the HBC remained in its resting state.

When swallowing (Figure 6-2), no discharge was observed from the AN. On the contrary, high and active discharges were observed from the HBC. Neither inhalation nor exhalation of air is possible during swallowing. The nares stop their movements. Only the HBC is active during swallowing. The HBC moves upwards and it shrinks against the entry of any foreign body into lower airways by the laryngeal reflex closure [10]. In fact organisms cannot inhale nor exhale air during this phase.

No action potential was observed from the AN when swallowing (Figure 6-3). Activities of the nostrils restarted about 105 ms before the end of swallowing. They continued during about 330 ms after swallowing as observed from the AN. It was thought that rebreathing started at this time. Waves from the HBC returned to the resting state after swallowing. Both the AN and the HBC returned to resting state after beverages entered into the esophagus (Figure 6-4) [11-14].

As observed by fiberscope, vocal folds open and narrow with sniffing rhythms [15]. In this study, from 10 to 20 ms before sniffing active potentials were observed from the AN. Then the HBC became activated at almost the same duration. Active potentials from the HBC were not from the vocal fold as seen in phonation.

The observed discharges from both the AN and HBC meant that after the nose opened wider for sniffing, the HBC moved with the same sniffing rhythms. The movement of the HBC can be thought to be downwards as these movements accelerate respiration. That is, airways from the nose to the trachea open wider for sniffing. As such, these movements might contribute to the sense of smell [16].

Conclusion

Electrophysiological recordings from surface electrodes at the level of AN and HBC showed that both the AN and HBC are static when respiration stops, whereas they open wide during breathing and phonation. Recordings showed that the AN stops its activities and the HBC is active during during swallowing, whereas both organs open wide after swallowing. Moreover, results showed that the AN and HBC are active when sniffing.

Overall, this study suggested that, physiologically the AN and the HBC are related and play a key role in functions that are essential to life.
